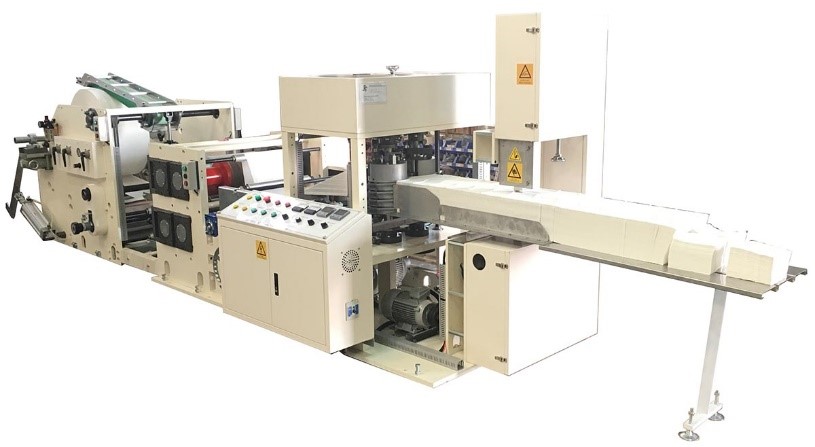

Napkin Folding Machine

_{Comes with accessories}

Model                                        : JY330B-1T2E

Manufacturing year                  :　2017

Technical data

* No. of Lane             : 2 Lanes delivery

* Folding system       : Mechanical system

* Folded Type            : 1/4-fold

* Unfold size (W x L) : 330mm (W) x 330mm (L)

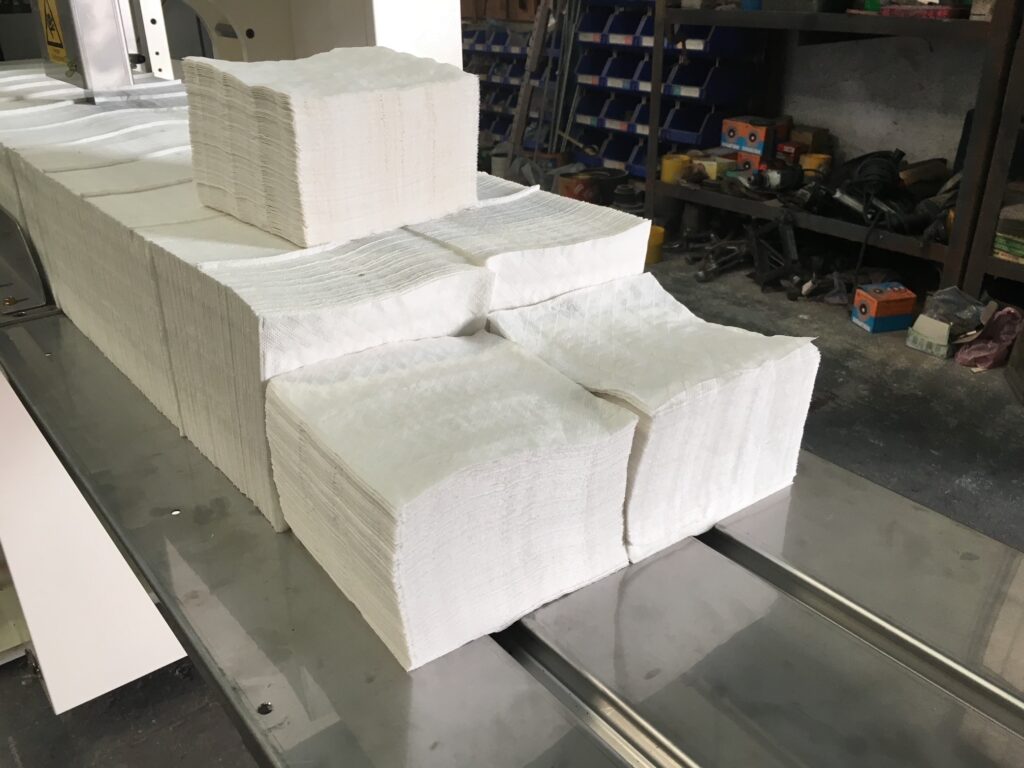

* Folded size (W x L) : 165mm (W) x 165mm (L) ± 3mm tolerance for 1/4-fold

* Operate capacity    : 100 ~150 Meter/ per min. (400~500 sheets/per min. Depend on paper

                                     quality)

* Converting web       : 1 ply napkin paper 18~25g/㎡、2 ply napkin paper 18~25g/㎡

* Parent roll width (working width)            : 330mm

* Parent roll diameter                                : Max.60″ = 1524mm

* Shaft Core diameter                               : 3″ = 76.2mm

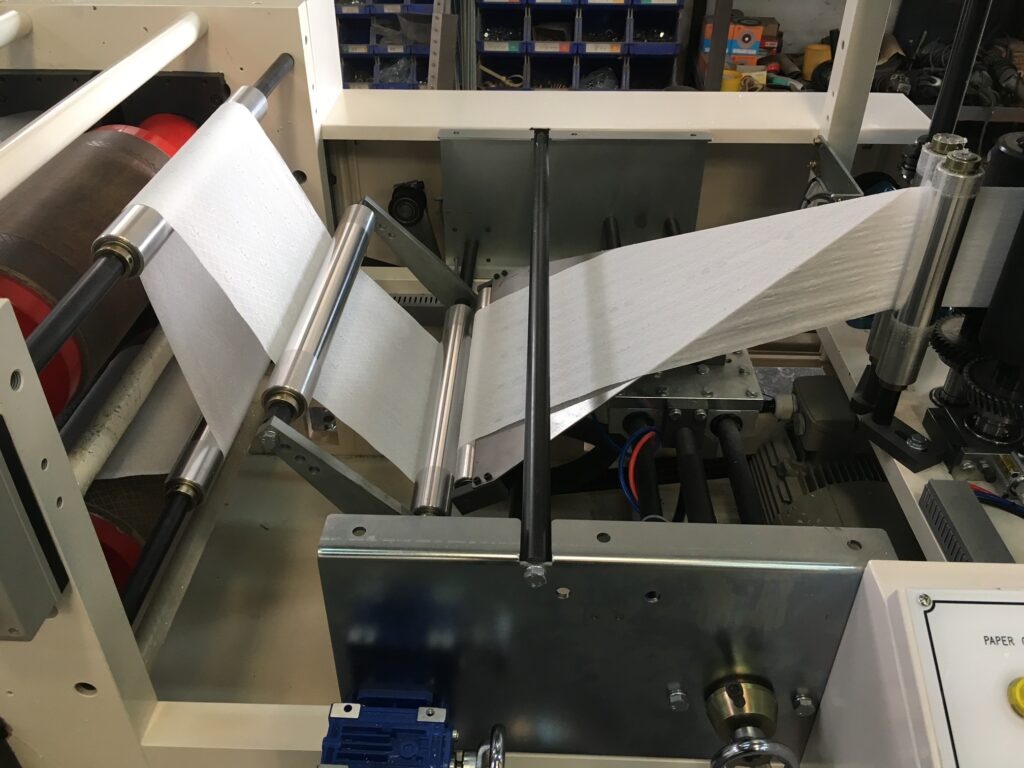

Unwinding unit

• Single unwinding stand
• Pneumatically operated reel lifter
• Horizontal movement of paper roll – manual
• Mechanical adjusting tension speed of tissue paper
• Automatic paper roll small detector
• Automatic paper roll expiry detector

Embossing unit

Two (2) embossing units. ( Steel roll to wood pulp paper roll.)

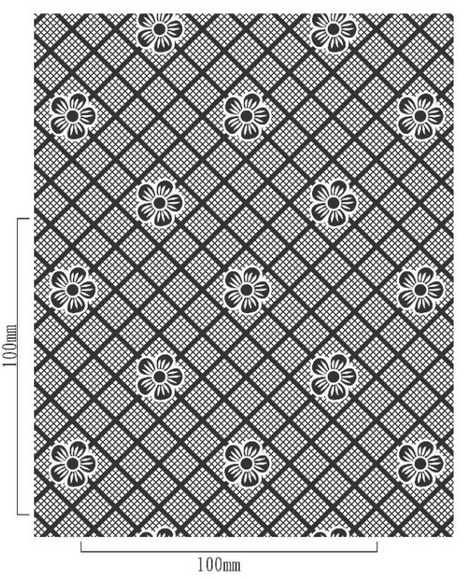

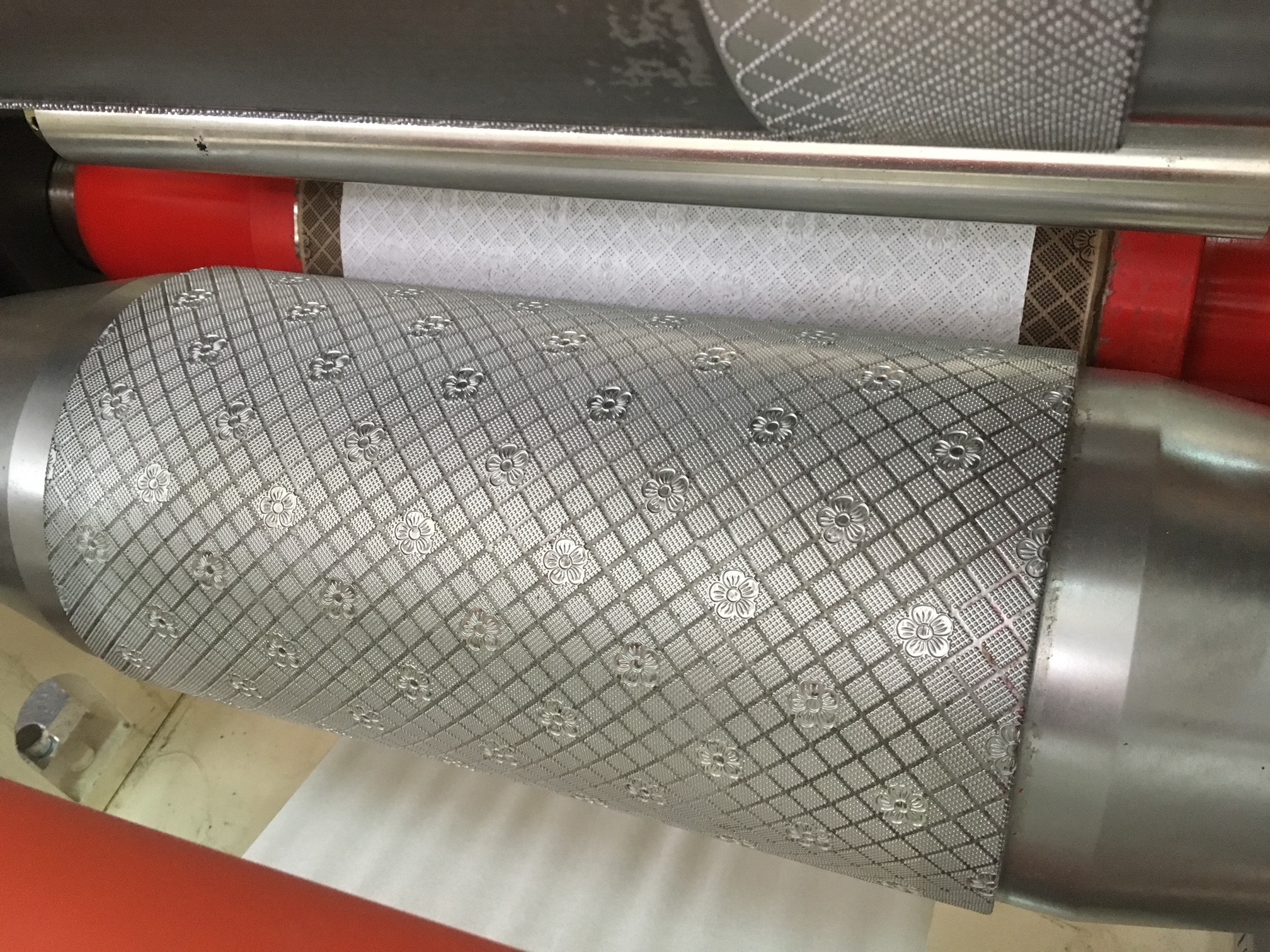

• First embossing unit with continuous and full embossing pattern No. 2A1932.-3.

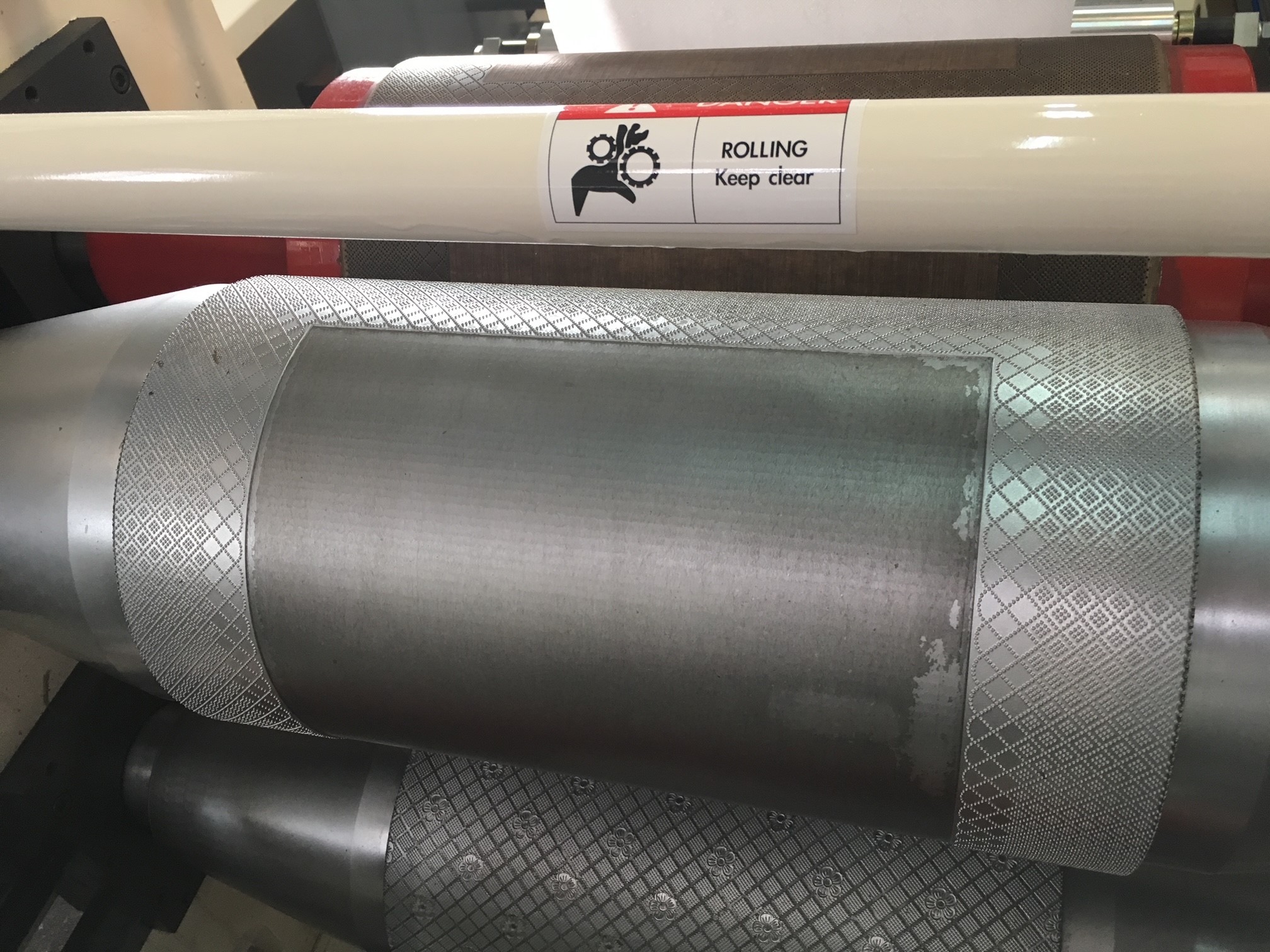

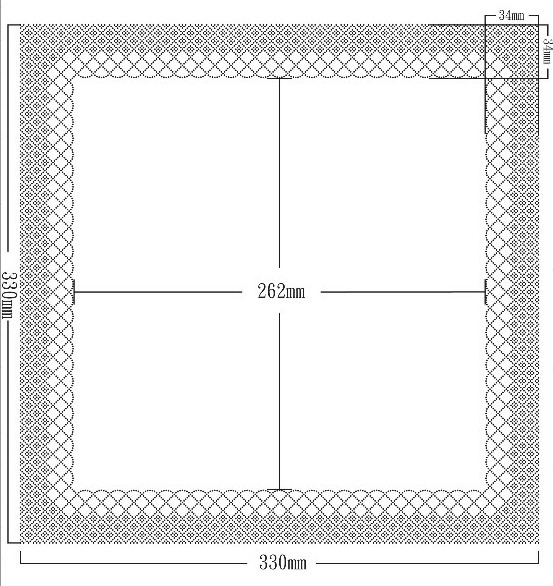

• Second embossing unit is twin mold edge embossing pattern No. 2A1890

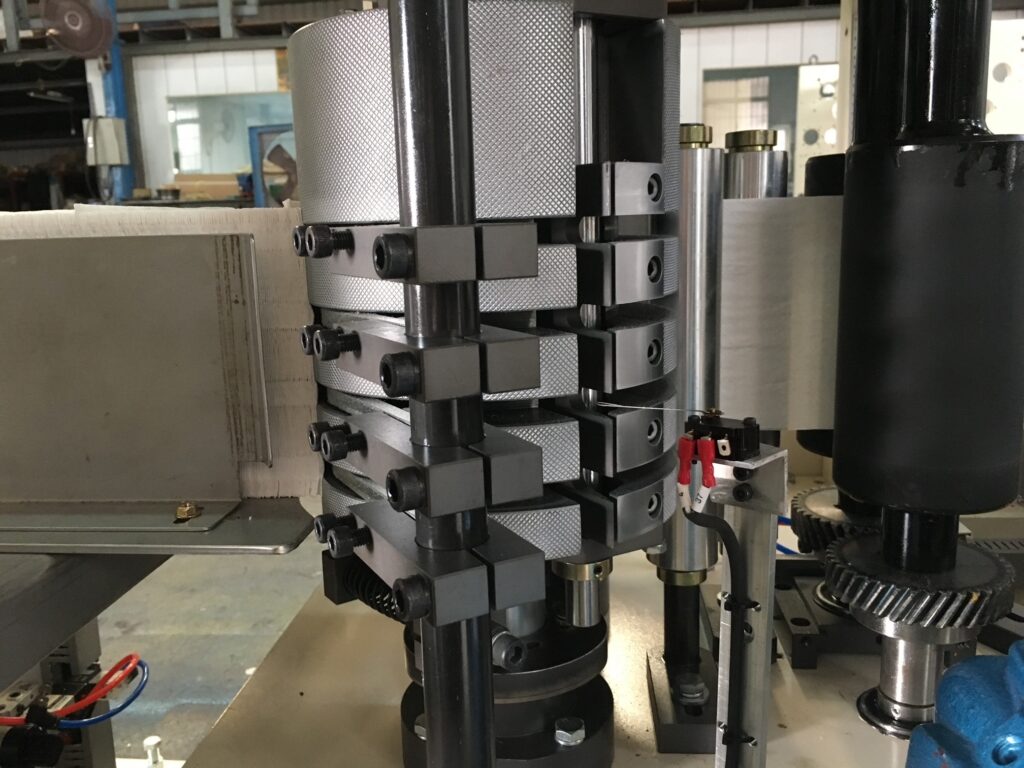

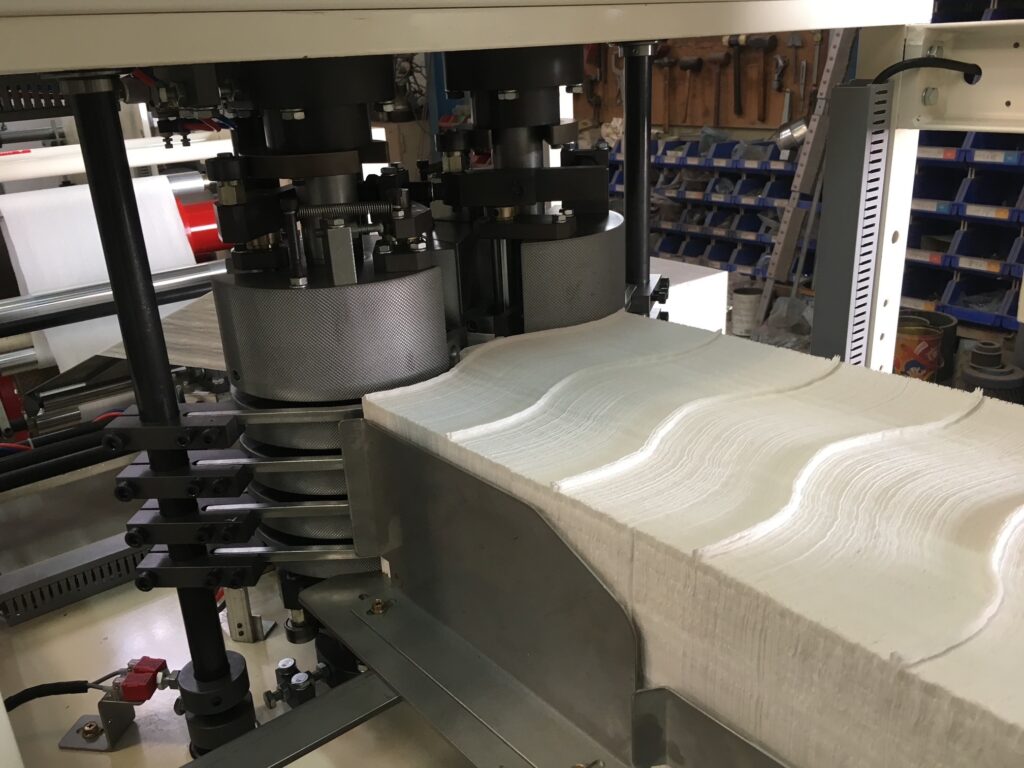

Band Saw cutting system with delivery table x 1 set.

Consisting of:

• Automatic grinding blade device (Automatic sharpening of blade).
• Sharpening by pneumatic driven via automatic device.
• Automatic electronic counter count adjustment device for sharpening time and interval time.
• Grinding stones through motor driven to sharpening saw blade.
• Adjusting grinding stones unit via manual device.
• Sharpening section: by pneumatically driven via automatic device
• Grinding stones by CBN (= industrial diamond with metal coating)
• Quick-change band saw knife device.

Electricals:-

Voltage                                 : 380V, 50Hz
Power requirement              : 5.5Kw motor + inverter for main machine

                                               2.2Kw motor for band saw

Air consumption                    : 0.3L/min (Air source 6-8 kg/cm²

Machine color                        : Rose white



Maxima 31 & 2 color in-line printer

Mfg: 1970s / Overhauled 2019

Mfgr: F+K

Status: in operation as of January 2020

Condition of Supply: Ex. Works / As it is.

Overhauled second hand Flat/Satchel Bag Making Machine

With:-

• 2 Color in-line printer (3 stations available but one defect)

               Bag Width           :   73 – 310 mm

               Cut Length          : 135 – 720 mm

               Paper GSM          :   30 – 90g

               Max. web width: 850 mm

Max. reel diameter: 1000 mm

Flat Forming Plates : 90 / 165 / 210 / 230 / 275 / 300

Printing Cylinders    : 320 / 420×2 / 460×3 / 500×2 / 590×2
